There aren't enough superlatives to describe my experience with Coastal Winds Avionics in the panel upgrade for my Glasair III. They provide a full service operation, which is perfect for experimental aircraft! From answering all my design questions, to competitive pricing, to custom coding and pushing the limits of what can be done with avionics today, and doing it all with the highest quality workmanship and professionalism...simply amazing! We spend a lot of thought and money on avionics and instrument panel design and fabrication in search of the "perfect" panel...Dallas takes any worry out of the process and delivers. When I have another avionics project, Dallas DeVilbiss and Coastal Winds will be my partner in the effort.

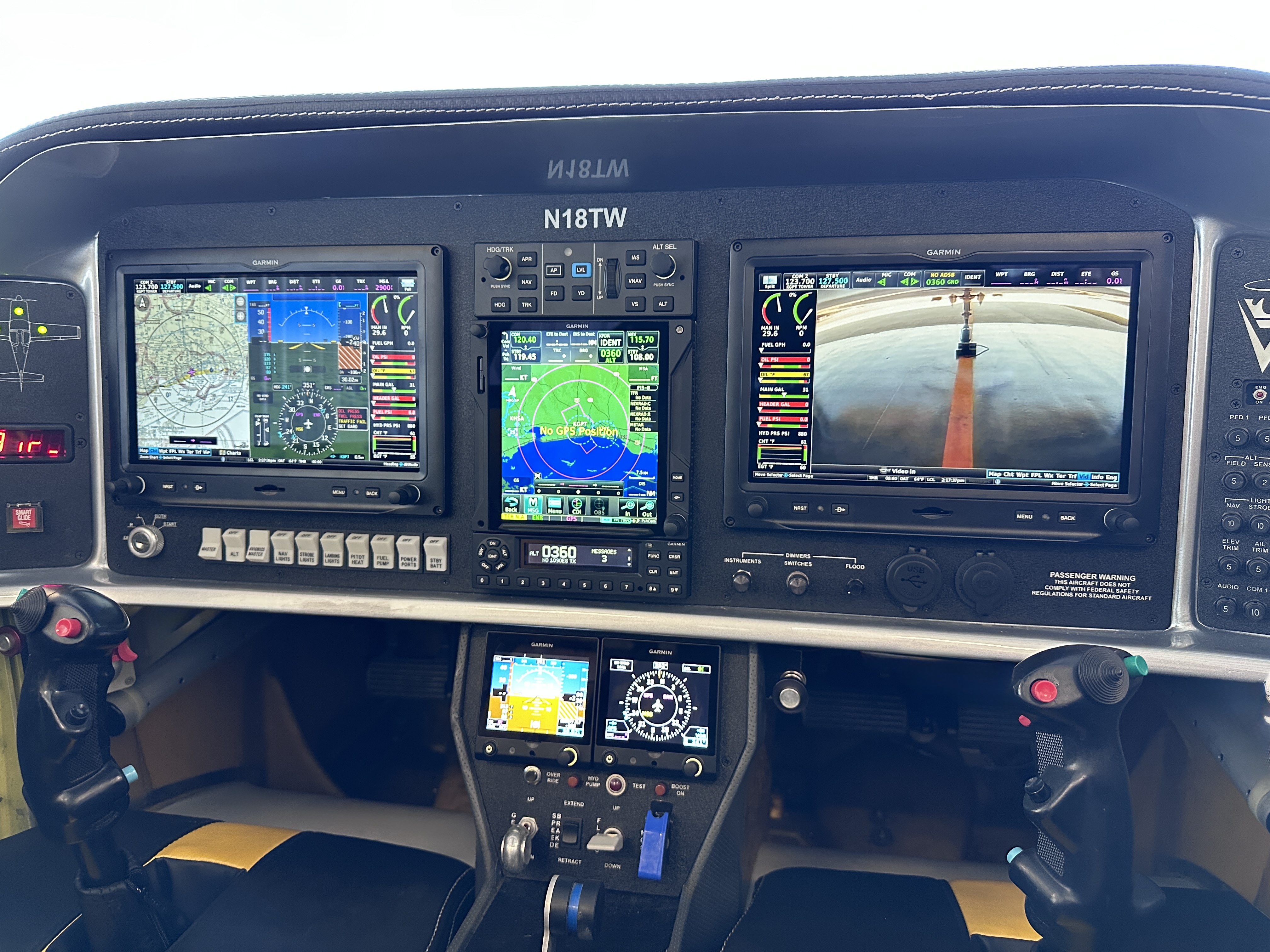

Primary Flight & Display System
* Dual Garmin G3X Touch GDU 460 10.6” PFD/MFD Displays
* Dual GDU 460/465 Install Kits
* Dual GA26X GPS Antennas
* Dual Garmin G5 Electronic Flight Instruments (ADI + HSI redundancy)
* Composite video feeds
* Custom Carbon Fiber Instrument Panel
* Infinity Stick Grips (PTT, Trim, AP DISC, Alt Hold)
Navigation, Comm & IFR Equipment
* Garmin GTN 750Xi GPS/NAV/COMM (flagship IFR navigator)
* Garmin GTR 20 Remote COM Radio
* Garmin GMA 245R Remote Bluetooth Audio Panel
* WAAS LPV approach capable
* Internal antennas (installed in tail cone) by Sportcraft Antennas
* Integrated wireless audio streaming + paired intercom capability
ADS-B & Transponder
* Garmin GTX 345 ADS-B IN & OUT Transponder
* Traffic, weather, AHRS, and Bluetooth streaming to EFBs
G3X High-Performance Core System
* G3X High-Performance LRU Kit (GSU 25D ADAHRS, GMU 22, GTP 59, Config Module)
* GSU 25C/D Connector Kit
* GMU 22 Install Kit + Universal GMU 22/44 Mounting Kit
* GEA 24 Engine/Airframe Module + Connector Kit
* G3X 6-Cylinder Sensor Kit
* 75 GPT Pressure Sensor
* Hall-Effect RPM Sensor
* Lambda gauge for continuous AFR
* New EI Fuel Probes integrated into G3X
Autopilot System (Fully Integrated)
* Garmin GMC 507 Mode Controller
* Dual Garmin GSA 28 Autopilot Servos (Pitch & Roll)
* Dual GSA 28 Connector Kits
* Dual GSA 28 Install Kits (with brackets)
Safety, Redundancy & Environmental
* Garmin GHA 15 Radar-Based Height Advisor (AGL precision callouts)
* AITHRE SHIELD EX 3.0 panel-integrated CO Detector (alerts through G3X + audio)
* Garmin GAP 26 Heated Pitot (14V, Unregulated)
* Cockpit Lighting by Val Avionics
* TCW Integrated Battery Backup System (IBBS) for emergency avionics power
* Multiple redundant attitude sources (G3X, G5, 750Xi backup modes)
System Interfaces
* Garmin GAD 29C ARINC 429 Converter + Connector Kit
* Garmin GAD 27 Integrated Power Controller + Connector Kit
TOTAL PANEL COST >$150,000 USD
